Interconnect Solutions

From high-frequency connectors and microwave cable to system-level test support, KLT builds complete signal paths for demanding programs.

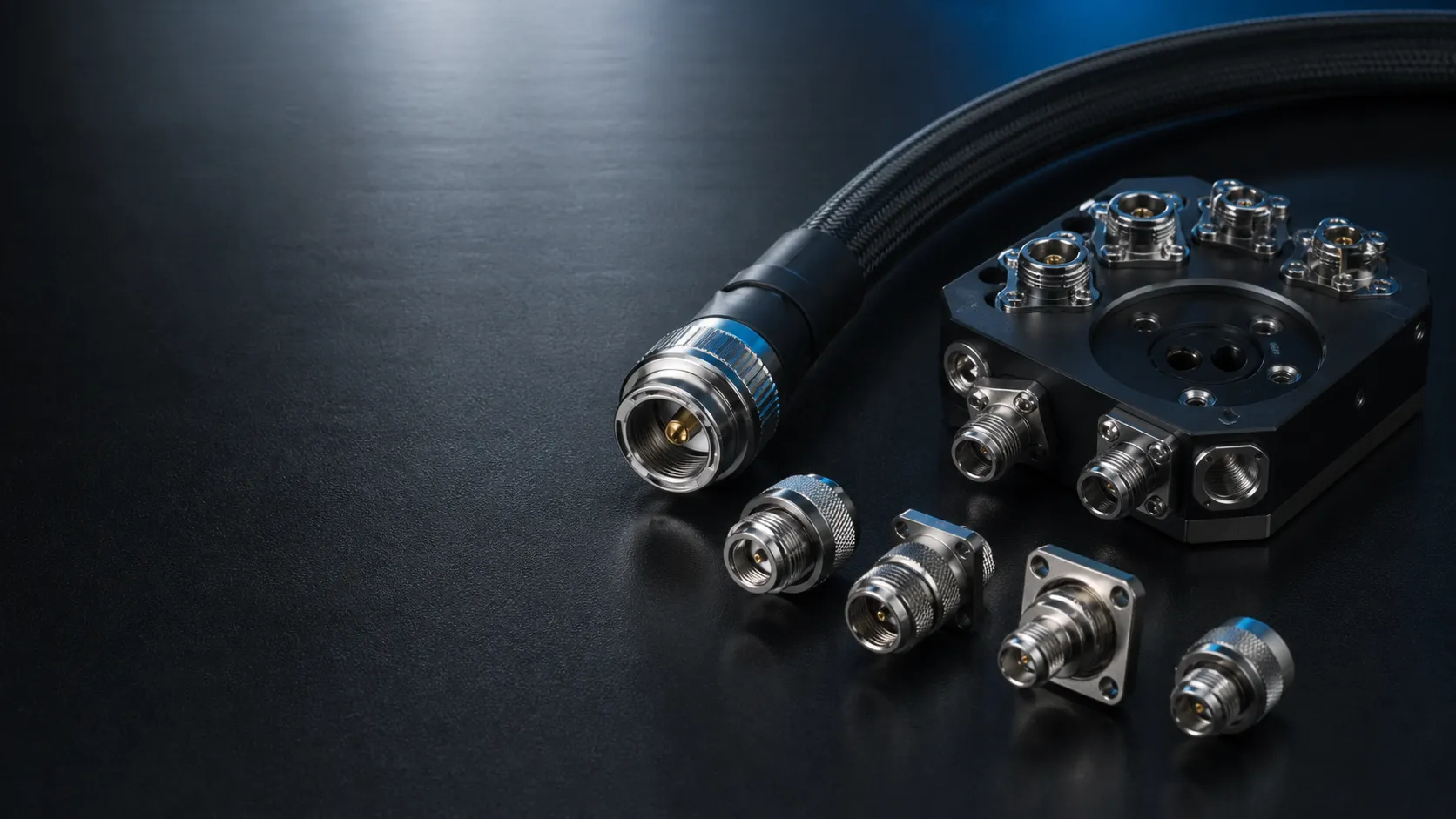

Precision RF Solutions

Precision RF interconnects combine microwave and millimeter-wave cable assemblies, RF connectors and board-level structures for radar, satellite communications, test and advanced manufacturing.

Connector and cable designs are engineered together for impedance continuity, low loss and repeatable mechanical performance.

Cable engineering and productionMaterials · cable assembly
Connector engineering and productionTermination · board-level interconnect

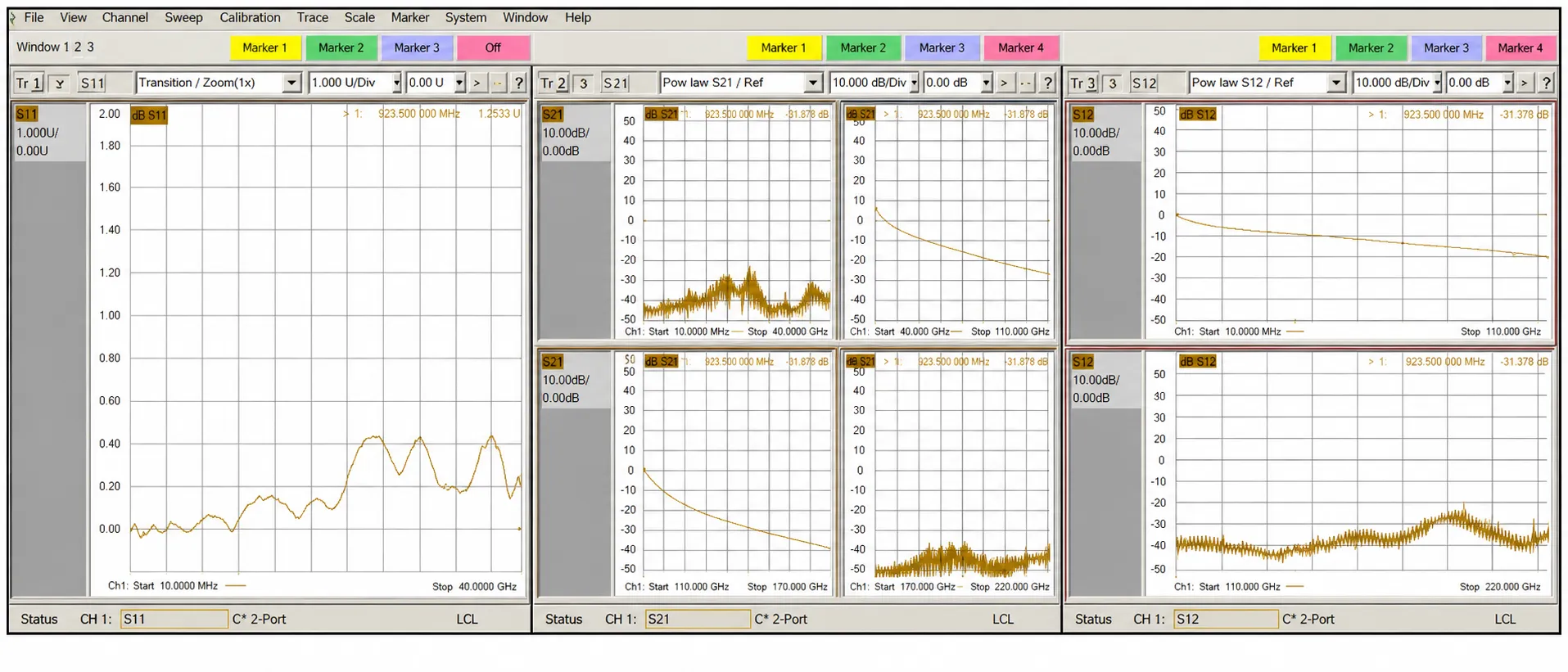

Test support and optimizationSimulation · verification · optimization

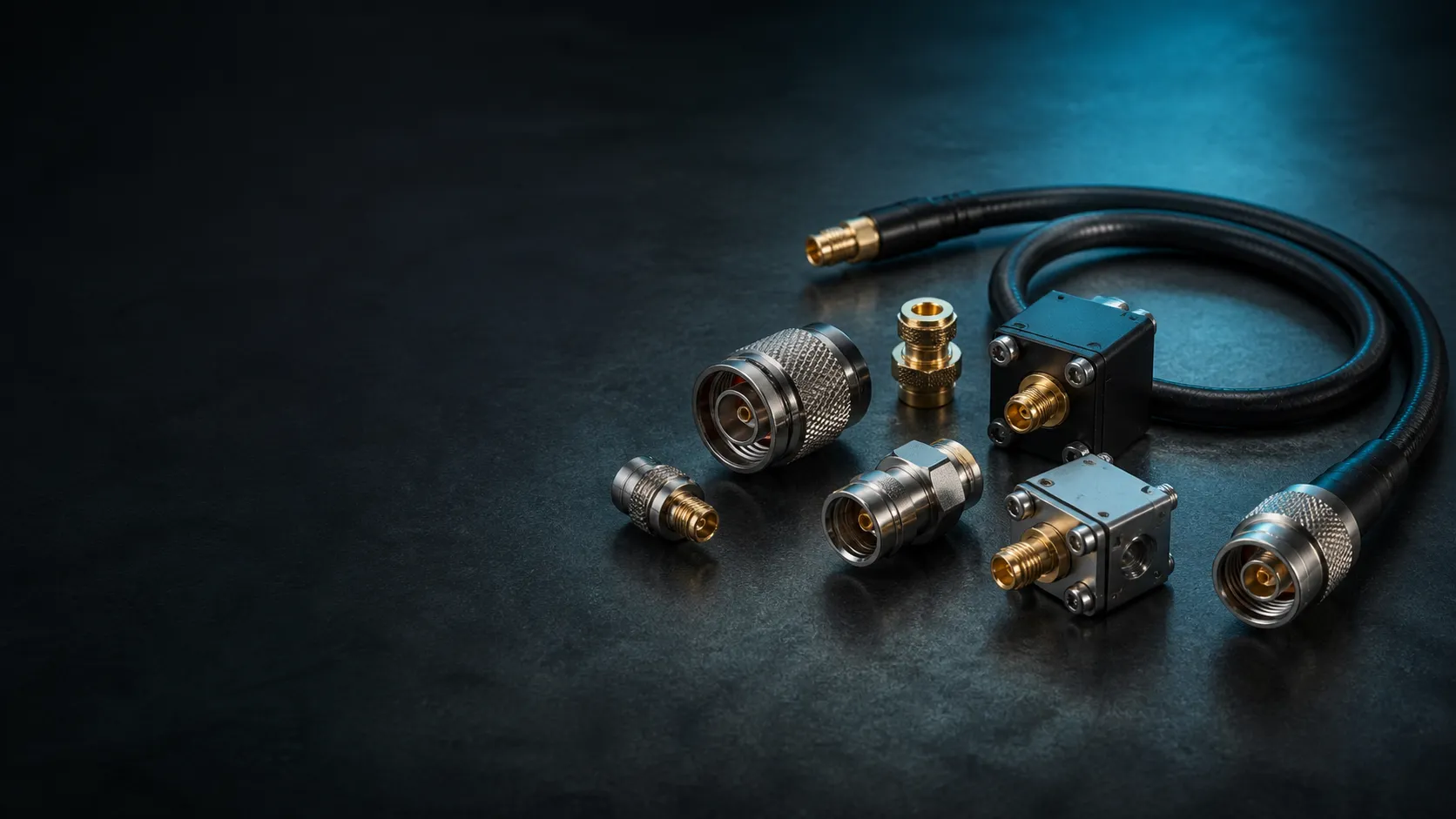

Mixed Interconnect Solutions

Choose RF interfaces, mechanical formats and termination options that suit the application while maintaining assembly efficiency and lead-time control.

ANY RF CONNECTOR · ANY MICROWAVE CABLE · ANY APPLICATION

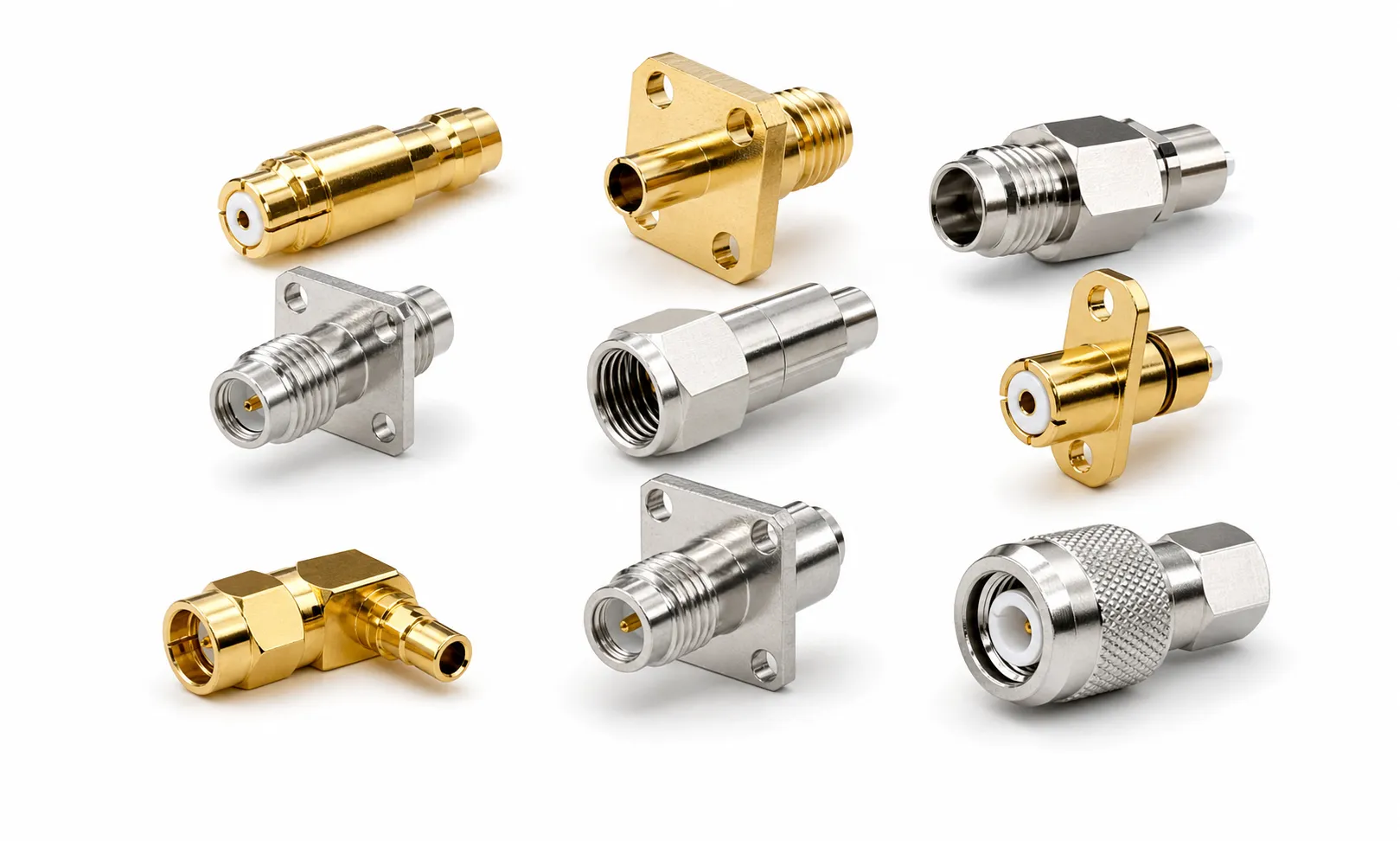

RF interconnect product 1RF interconnect product 2RF interconnect product 3RF interconnect product 4RF interconnect product 5RF interconnect product 6

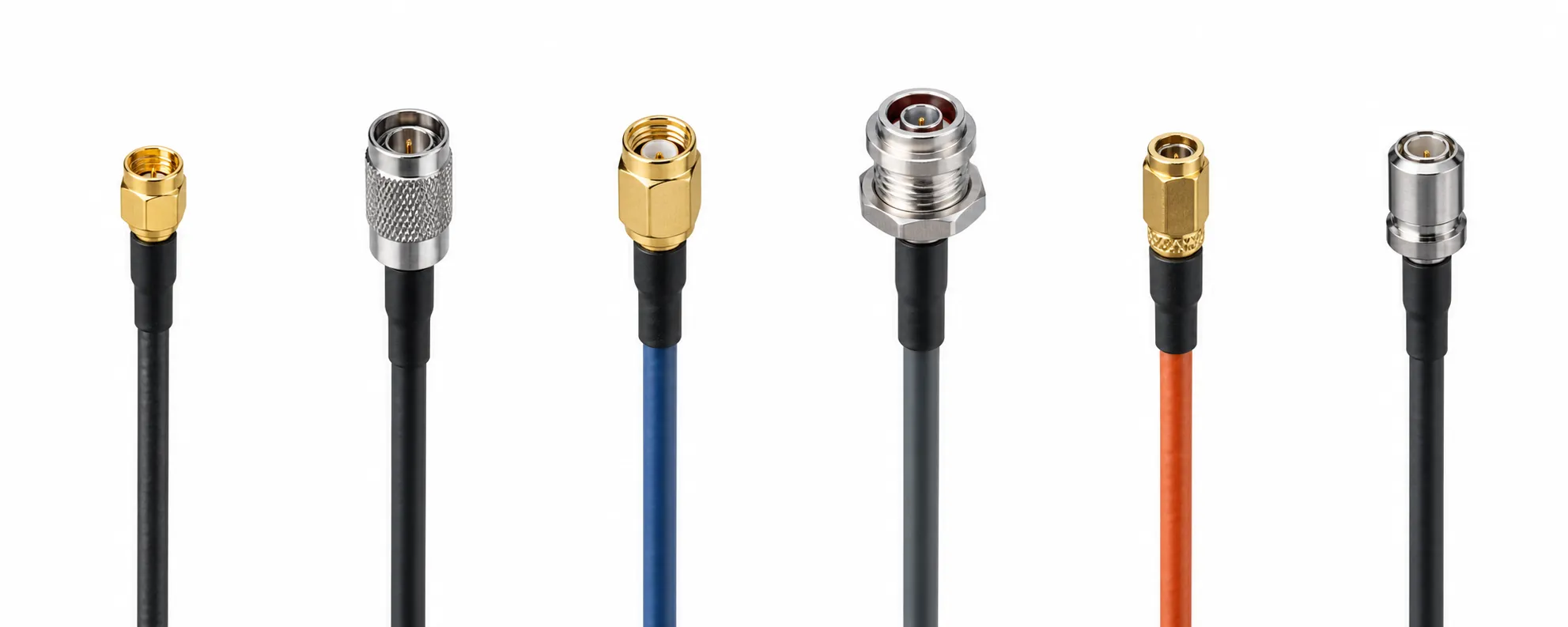

RF cable termination examples

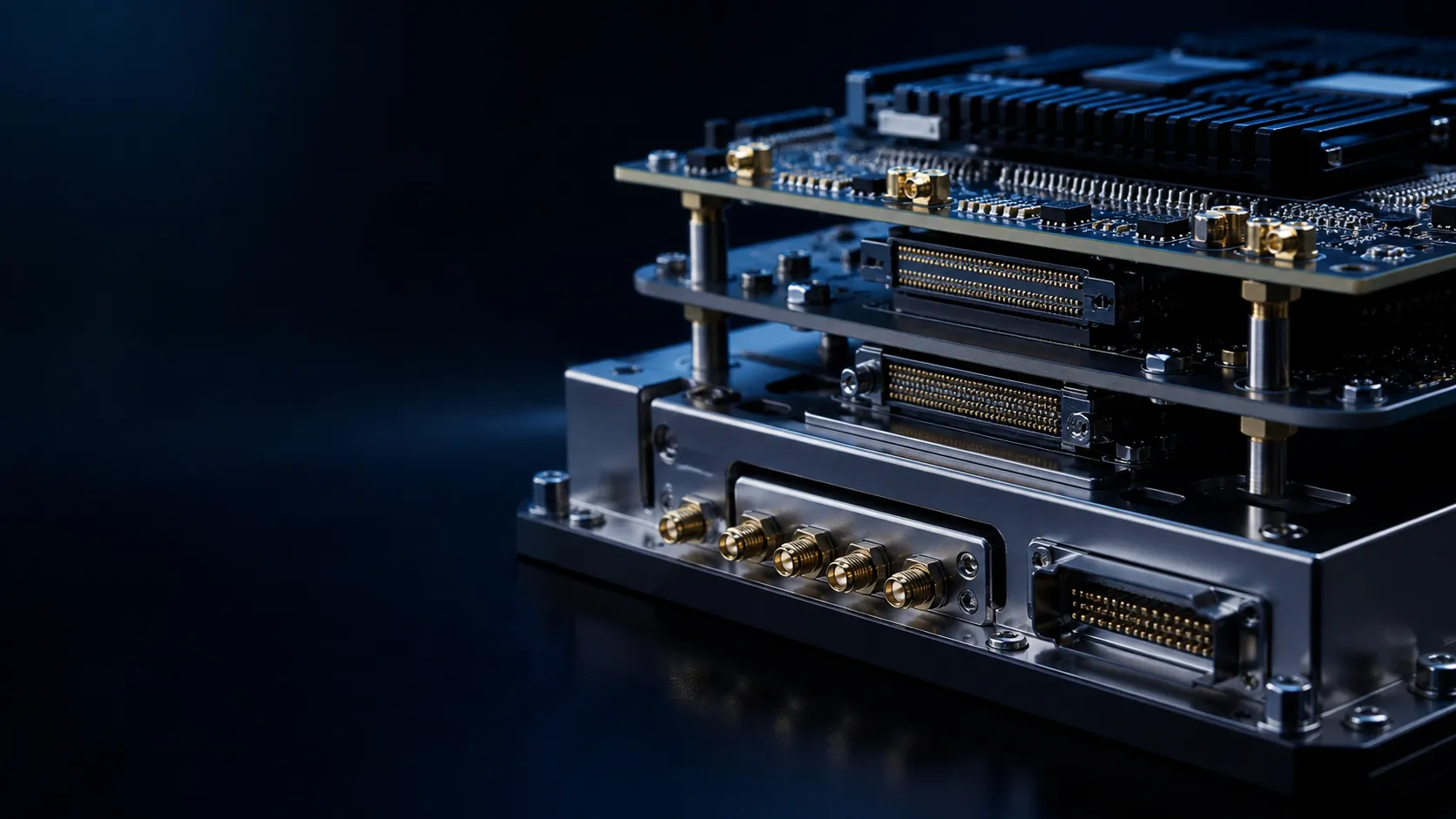

Board-to-Board Interconnect Solutions

Five project-proven interconnect structures for high-frequency, high-density, multi-channel systems with varying board spacing requirements.

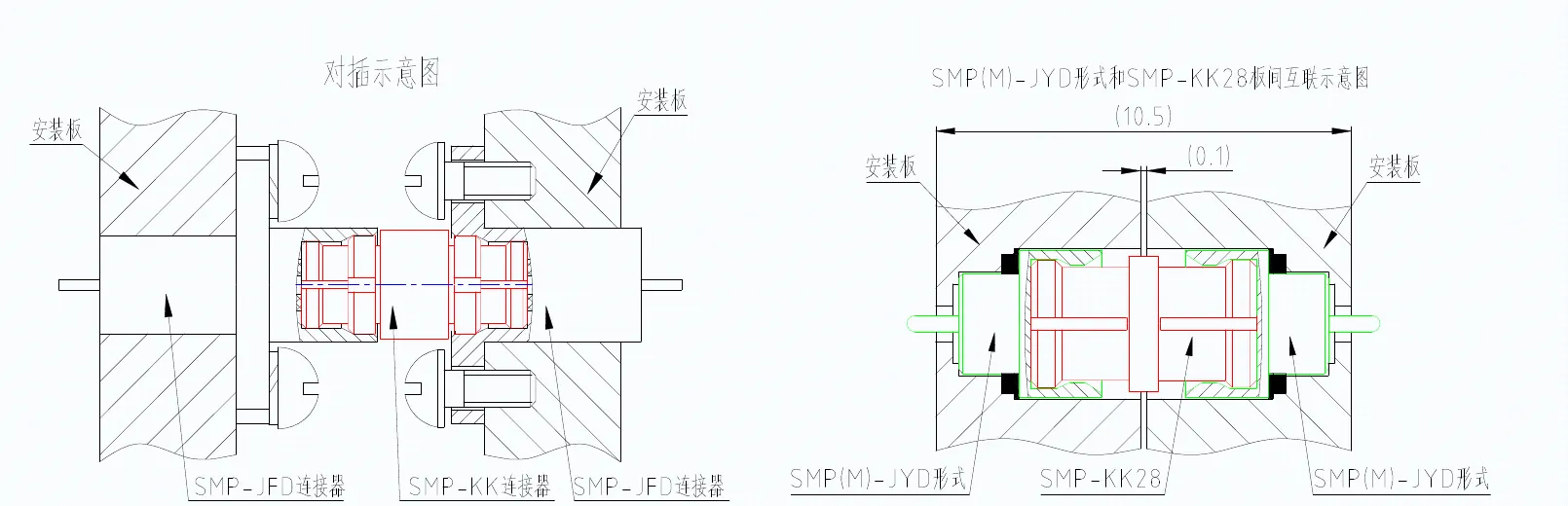

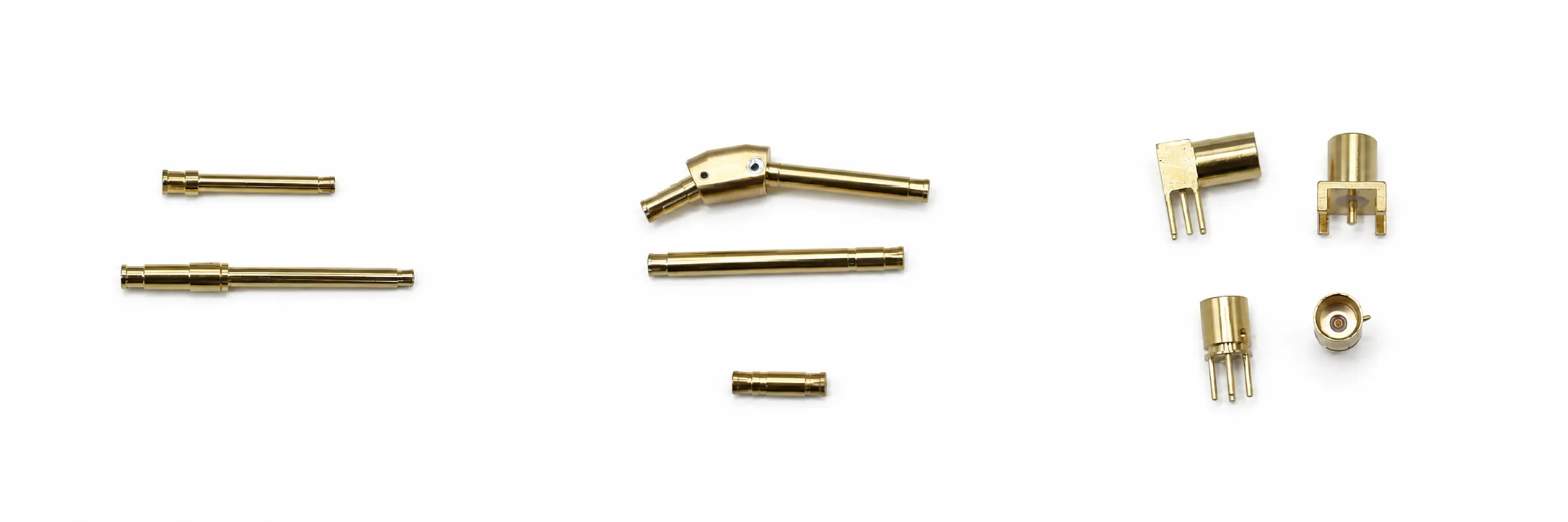

SMP, SSMP and WMP series board-to-board mating structure diagramSMP, SSMP and WMP series receptacles and female-to-female adaptors
01

SMP, SSMP and WMP Series Solutions

Use SMP, SSMP and WMP series products for board-to-board interconnect — high installation density, excellent vibration resistance and high operating frequency. Mount receptacles on both module panels; connect via a female-to-female adaptor in the middle.

  • Panel receptacles support flange, threaded, solder and crimp mounting
  • Suitable for high-frequency, high-density and variable board-spacing module interconnection

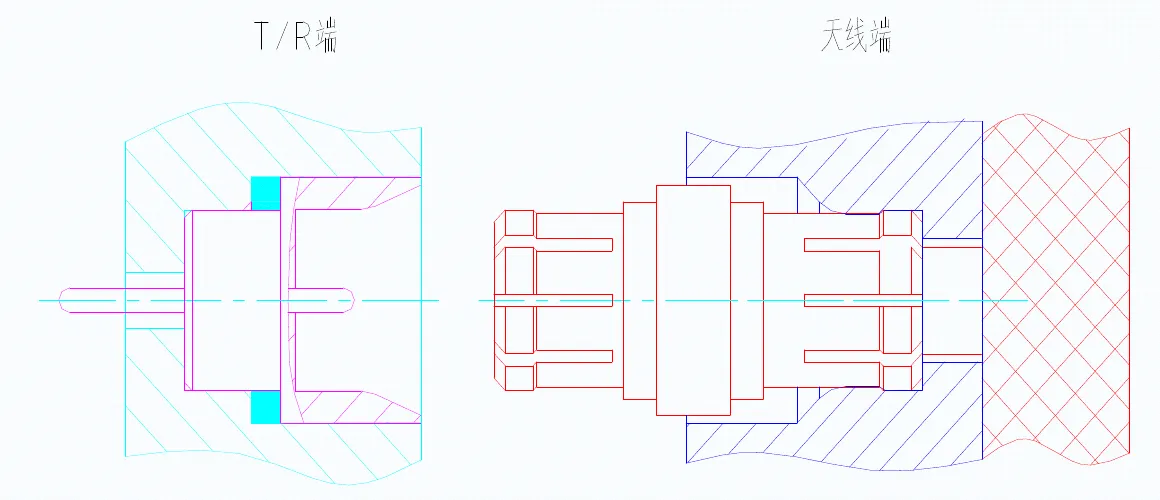

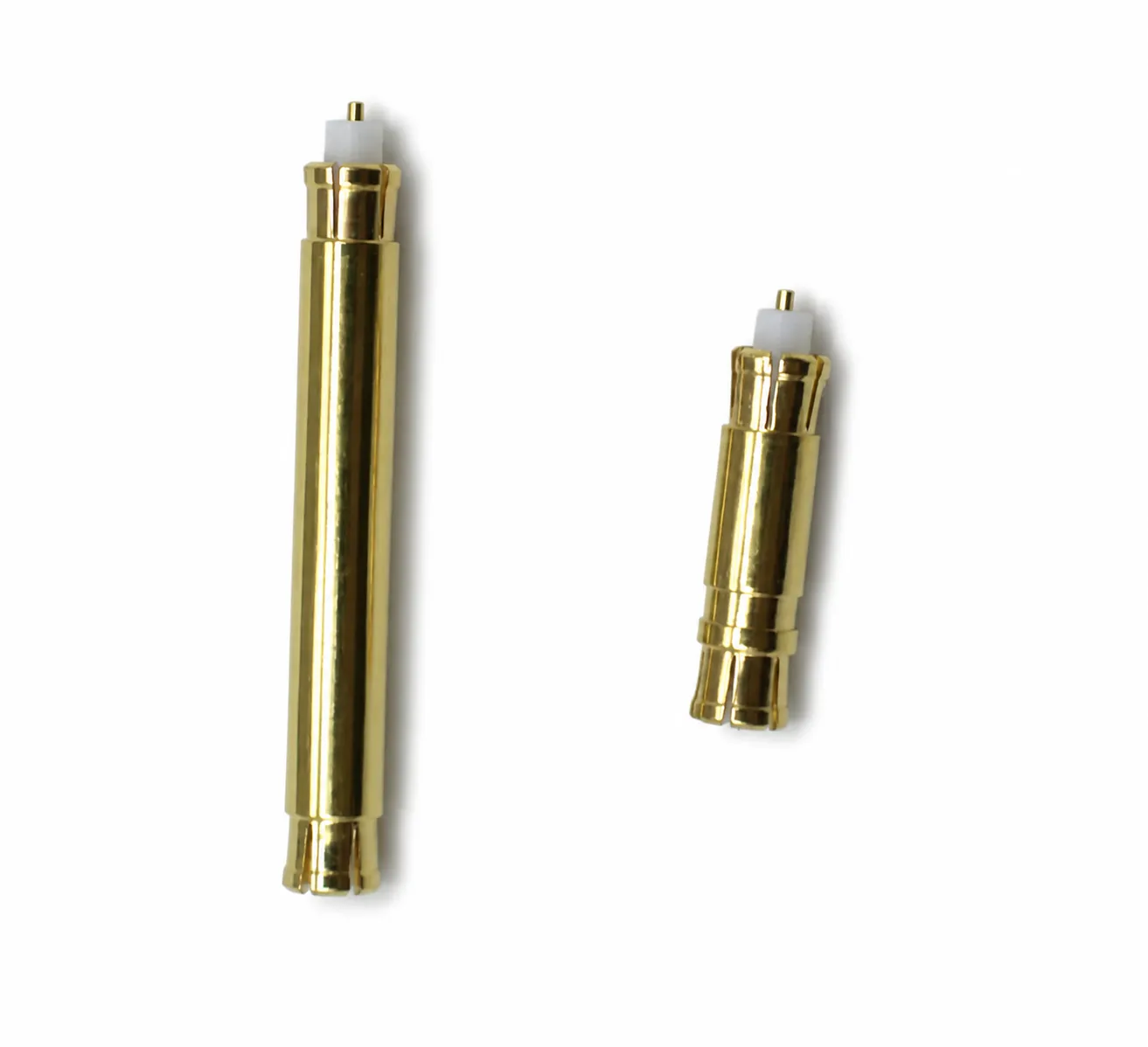

Touch-contact board-to-board interconnect T/R-side and antenna-side structure diagramTouch-contact board-to-board interconnect female-to-female adaptors and spring-pin products
02

Touch-Contact Solutions

For integrated antenna structures with up to 3 000 channels and spacing as small as 3.5 mm × 3.5 mm: the T/R side uses standard receptacles with a female-to-female adaptor; the antenna side integrates the SSMP‑J interface directly into the structure panel; the inner conductor contacts the antenna π‑point via spring pins.

  • Avoids thread stripping, screw breakage, tap fracture and panel deformation associated with high volumes of M3 threaded holes
  • Avoids cold solder joints and heat-induced panel deformation from soldering — ideal for ultra-high-density antenna channels

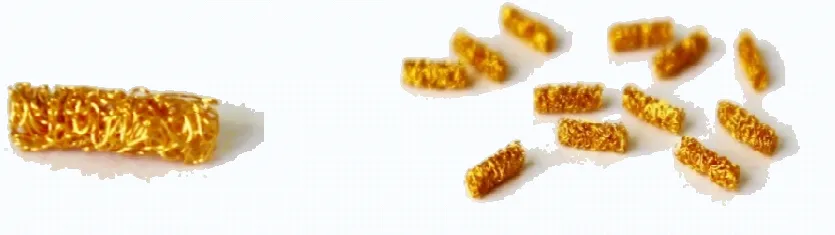

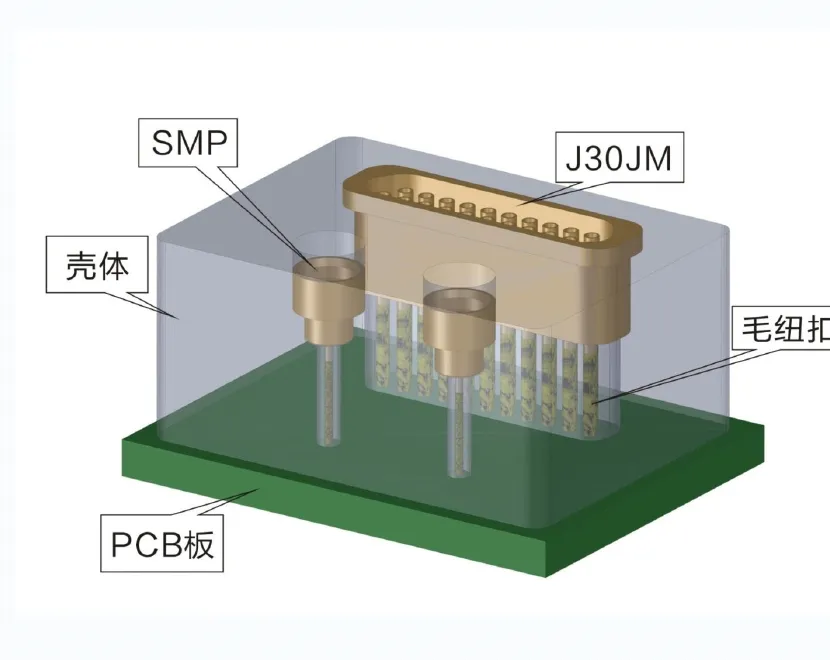

Fuzz-button with SMP and J30JM combined board-to-board interconnect application structureFuzz-button contact components
03

Fuzz-Button Solutions

Fuzz buttons are formed from gold-plated wire wound through a specialised process. They can compress axially by 10%–30% of their length; after compression, end-face spring force makes reliable electrical contact. They carry either high-frequency or low-frequency signals and can integrate multiple signal channels on a single board.

  • Combinable with SMA, 2.92 mm, SMP and SSMP RF interfaces
  • Can form high-density, mixed-signal interconnect solutions when combined with J30JM low-frequency connectors

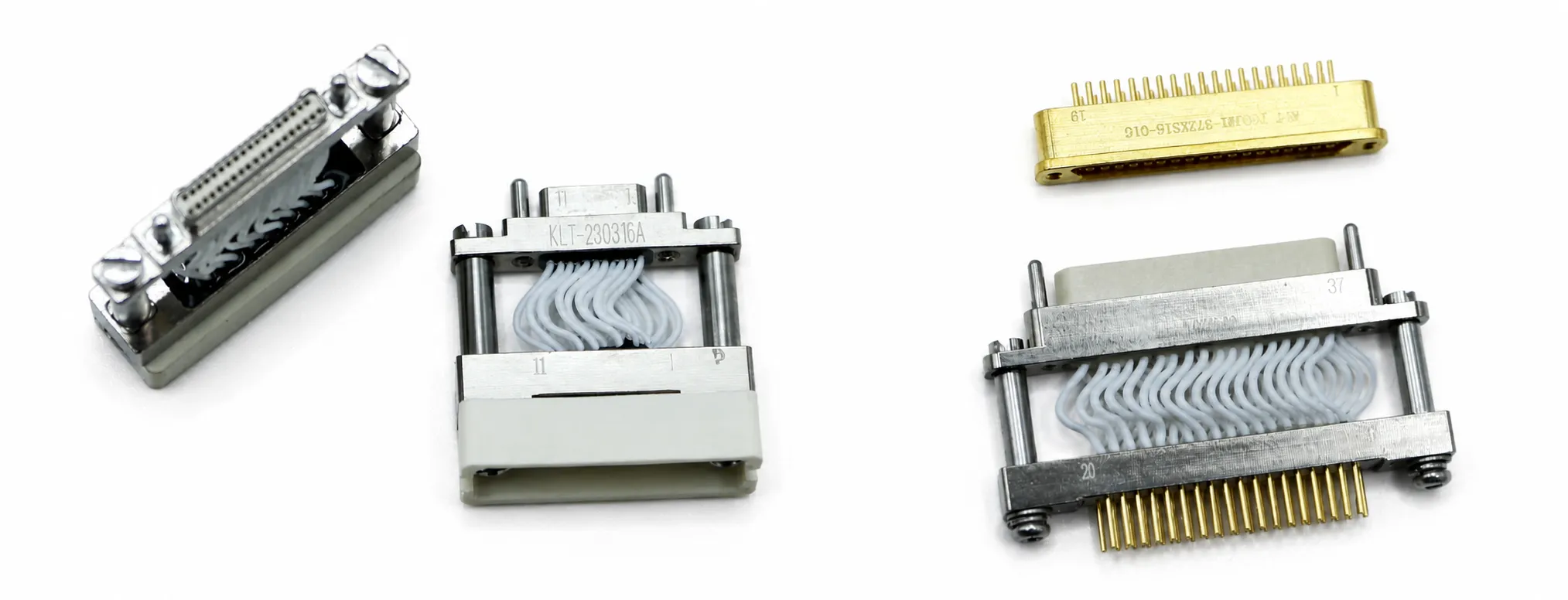

J63A and J30JB floating board-to-board interconnect products
04

J63A / J30JB Floating Solutions

When boards require rigid hard-mate interconnection, floating plugs reduce mating difficulty and prevent connector damage from rigid alignment. Also accommodates larger board spacing, enabling plug-to-receptacle mating without an additional adaptor.

  • Supports simultaneous mating of multiple connectors
  • Reduces assembly misalignment and connector damage risk
Micro-D ConnectorsView products →

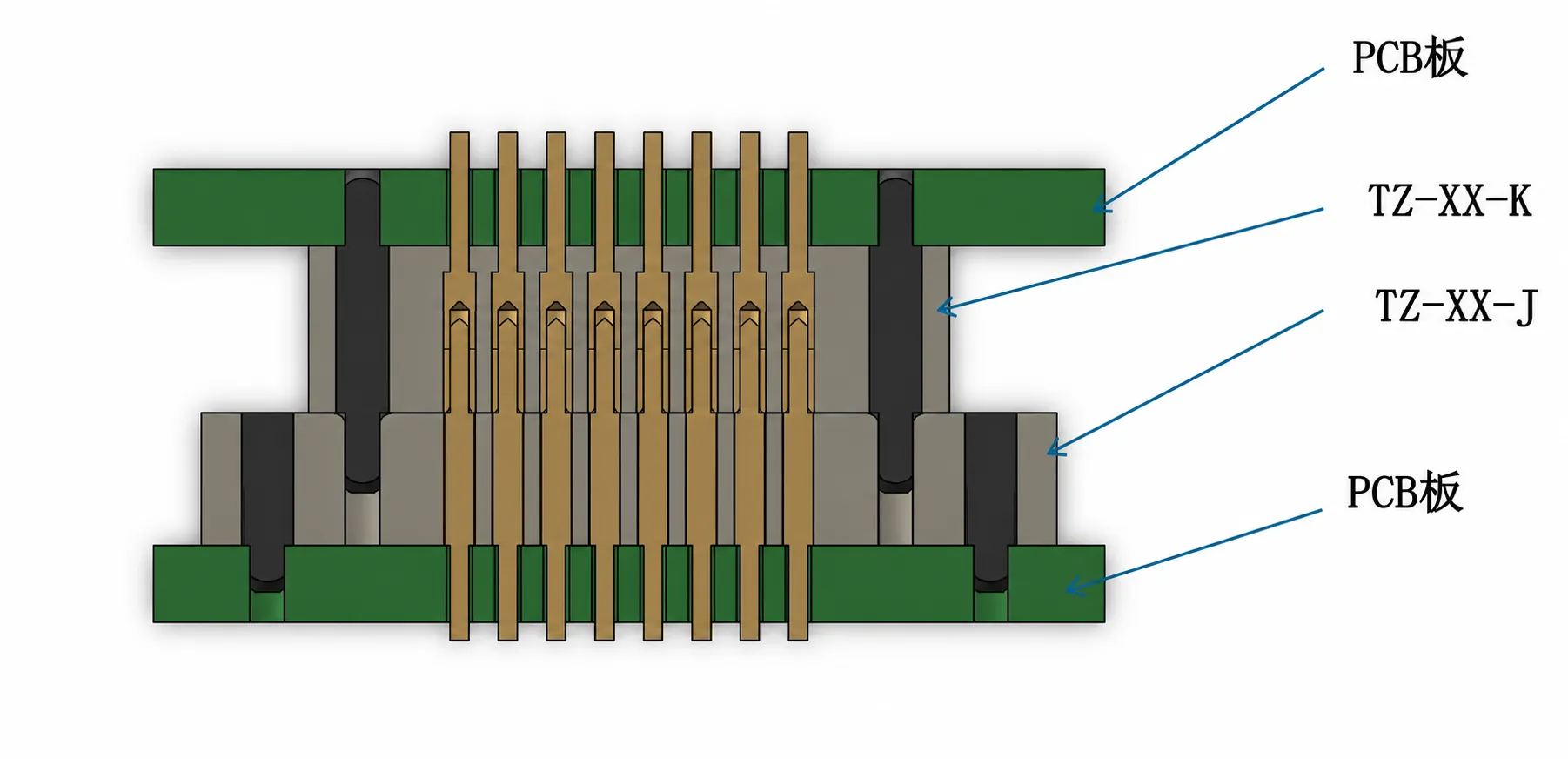

TZ series rigid-pin and slotted-receptacle multi-contact board-to-board interconnect structure
05

TZ Series Multi-Contact Board-to-Board Solutions

The TZ series uses rigid pins mated with slotted receptacles for multi-contact board-to-board signal transfer. Contact spacing is 1.27 mm × 1.27 mm; stack height is customisable to user requirements. Mating force is low and installation is straightforward. Because the contacts are rigid, simultaneous mating of multiple connectors is not recommended.

  • Available in 16-contact and 32-contact configurations — suitable for close-spacing multi-contact signal transfer
  • Customisable board spacing height; individual connector mating is more reliable
ENGINEERING & QUALITY

Traceability from design through inspection

Our core team brings 10–25 years of connector engineering and manufacturing experience across RF, low-frequency, hermetic sealing and cable assemblies.

01Requirement reviewInterface, frequency, space and environment
02Mechanical designStandard selection or custom development
03Precision manufacturingMachining, assembly, plating and sealing
04100% inspectionTraceable production and inspection data
CONTACT ENGINEERING

Put your requirement in engineering hands

For standard selection, alternates, rapid prototypes or harsh-environment designs, tell us the interface, frequency, space, environment and quantity.

LOCATION25 Tangyan Road, High-tech Zone, Xi'an, Shaanxi, China
RESPONSERapid feasibility review · standard and custom support
